Description

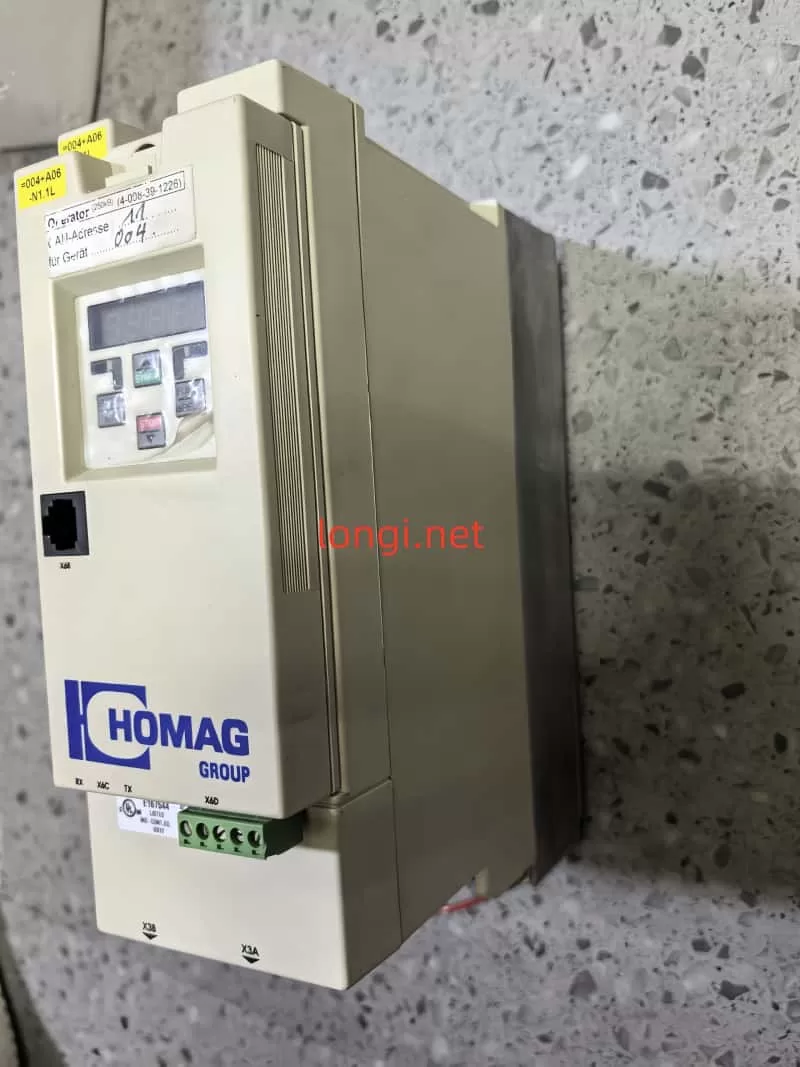

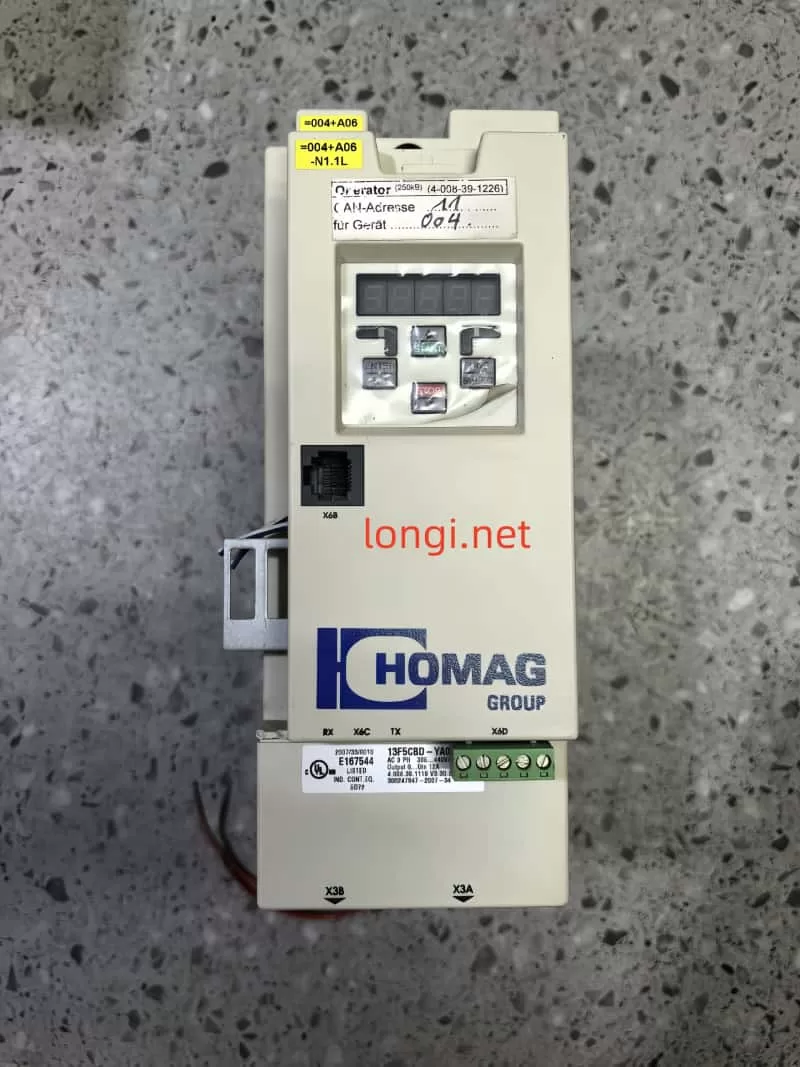

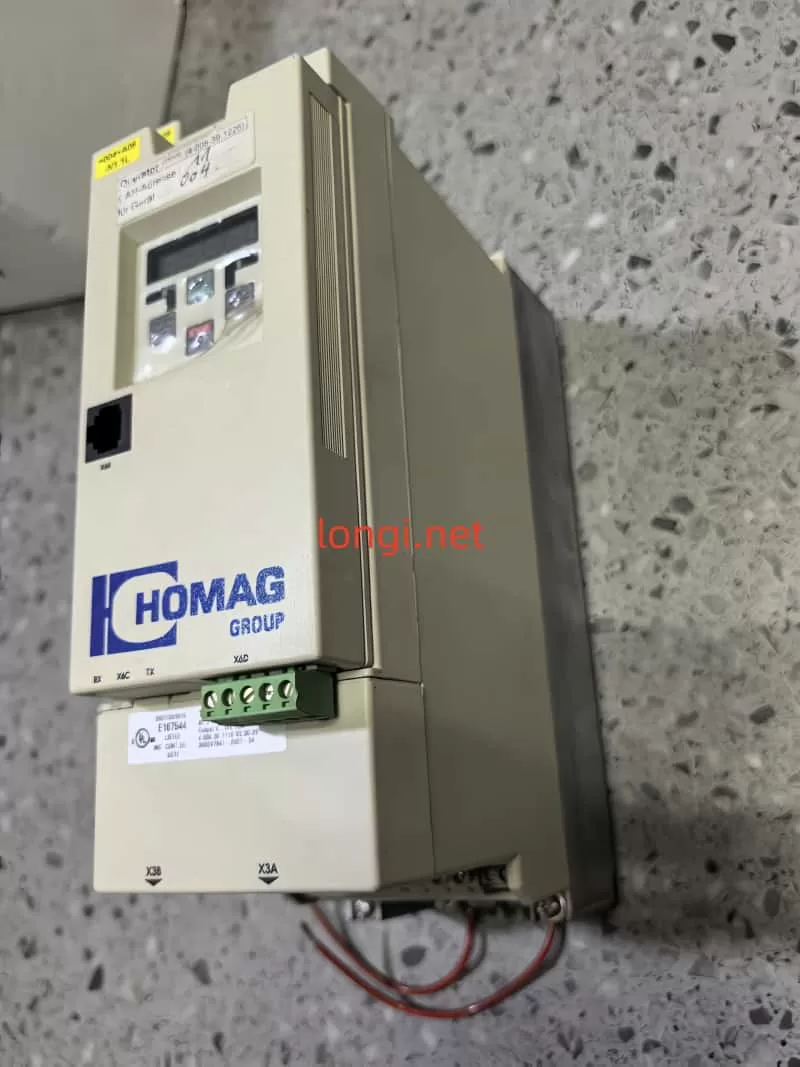

This inverter is a genuine KEB F5 series unit, model 13F5CBD-YA00, rated at 5.5kW (8.3kVA). Widely used in HOMAG woodworking machines. The unit is an original dismantled component, in very good physical condition and fully tested. Ideal for replacement or retrofit.
Key Features:
-
Brand: KEB (Karl E. Brinkmann)
-
Model: 13F5CBD-YA00
-
Rated Power: 5.5kW (8.3kVA)
-
Input Voltage: 3-phase 305
440V @16.8A, or 460500V @15.0A -
Output Frequency: 0–1600Hz
-
Output Current: 0–440V @12A, or 480V @11A
-
Control Mode: Vector control
-
With built-in operator panel
-
Condition: Original used, dismantled from HOMAG machine

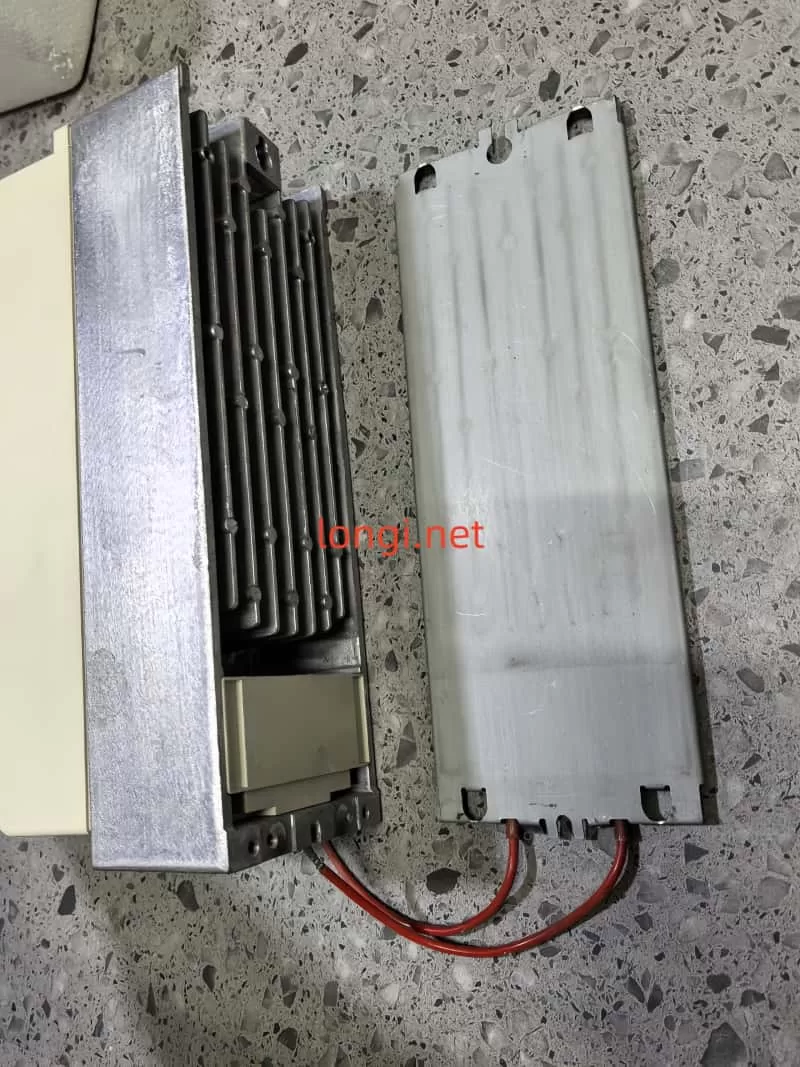

Comes with full heatsink, terminal blocks, and interface panel. Suitable for HOMAG CNC centers, edge banding machines, and other wood processing systems.
✅ Technical Specification Table
| Parameter | Description |
|---|---|
| Brand | KEB (Karl E. Brinkmann) |
| Series | F5 Series |
| Model | 13F5CBD-YA00 |
| Rated Power | 5.5kW / 8.3kVA |
| Input Voltage | 3PH AC 305–440V @16.8A or 460–500V @15.0A |
| Output Voltage | 3PH AC 0–440V @12A or 480V @11A |
| Output Frequency | 0–1600Hz |
| Control Type | Vector Control |
| Operator Panel | Built-in digital keypad display |
| Mounting Type | Wall-mounted |
| Motor Compatibility | AC Motor 5.5kW, 2/4-pole, 50/60Hz |
| Condition | Original used, dismantled from working machine |
| Source Equipment | HOMAG woodworking machine (Germany) |

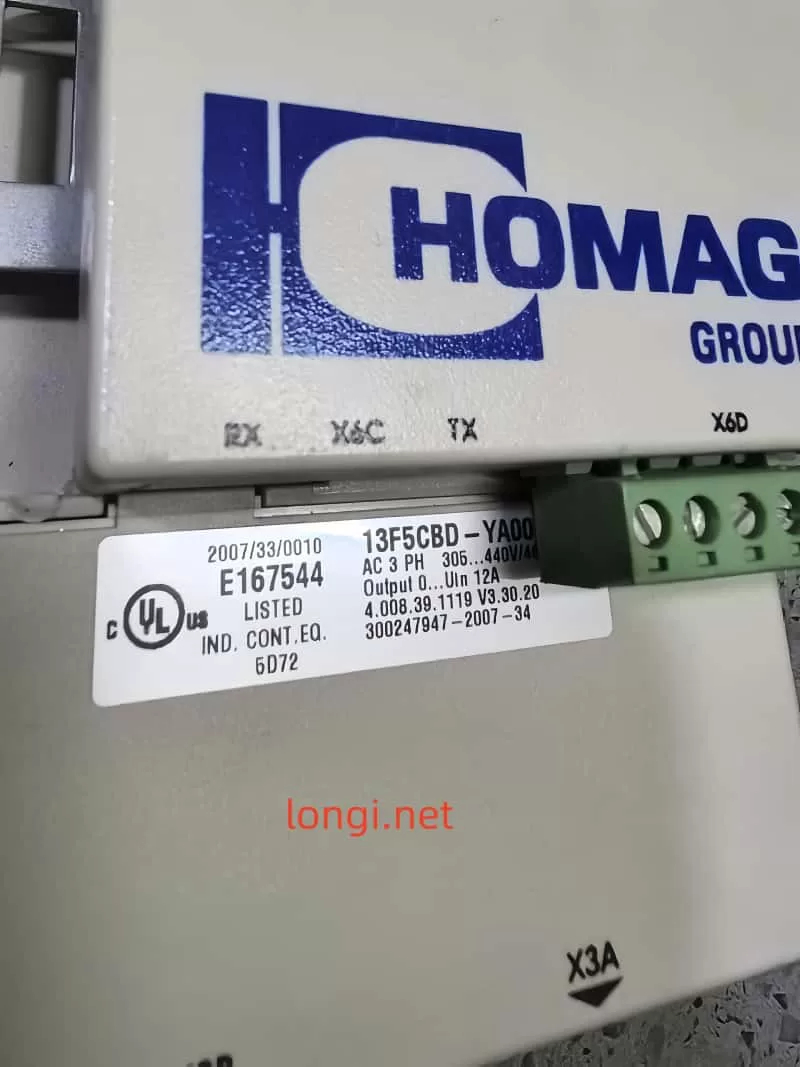

| Certifications | UL/cUL E167544, CE certified |

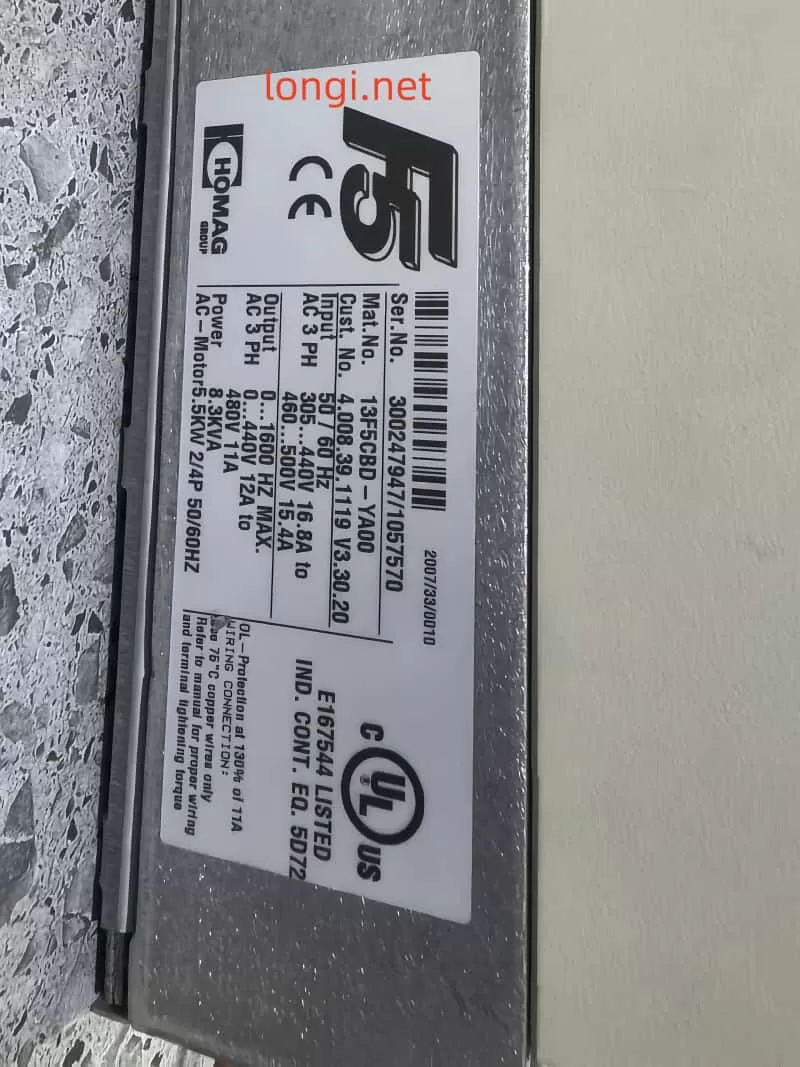

| Serial Number | 300247947 / 1057570 |
