Description
Detailed Description:

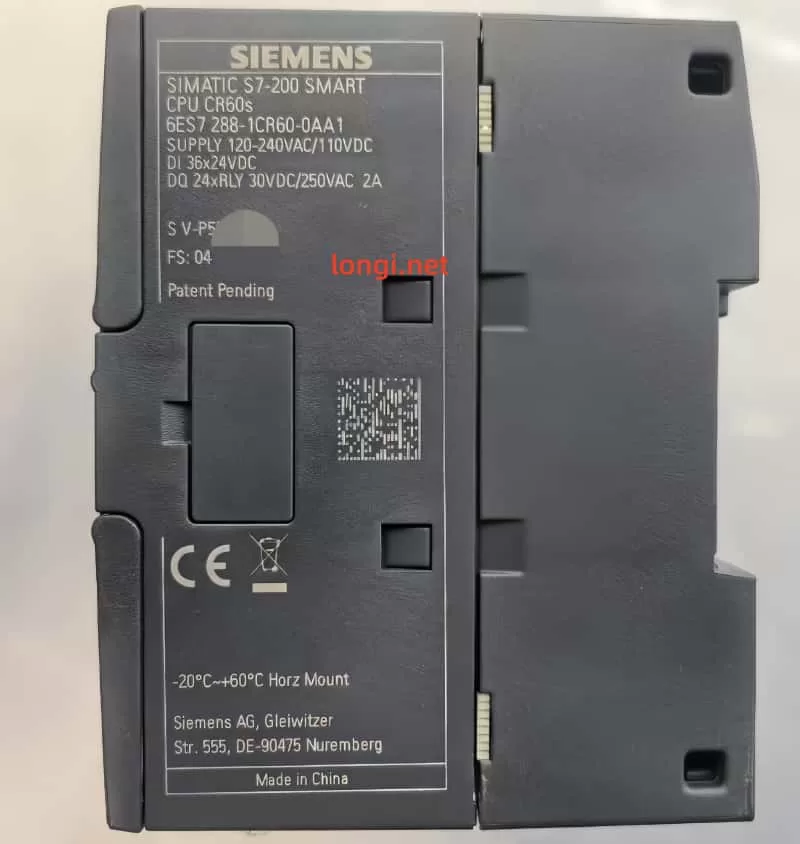

The Siemens S7-200 SMART series is a cost-effective compact PLC designed specifically for the Chinese market. The 6ES7 288-1CR60-0AA1 (CPU CR60s) is a compact, high-performance controller suitable for general-purpose industrial automation.
Product Features:
-
Model: 6ES7 288-1CR60-0AA1 (CPU CR60s)
-
Power Supply: 120–240VAC / 110VDC
-
Digital Inputs: 36 channels (24VDC)
-
Digital Outputs: 24 Relay outputs (RLY), max 2A each
-
Built-in Ethernet port for programming and Modbus TCP communication
-
Mounting: Horizontal installation
-
Operating Temperature: -20°C to +60°C
-
Compact design for easy panel integration
-
Compatible with SMART LINE analog extension modules
-
Ideal for packaging machines, textile machines, pump and fan control, and other automation systems
-
Technical Specifications
Specification Details Product Name Siemens S7-200 SMART CPU Module CR60s Model Number 6ES7 288-1CR60-0AA1 Power Supply 120–240VAC / 110VDC Digital Inputs 36 channels, 24VDC Digital Outputs 24 relay outputs, max 2A per channel Output Type Relay (RLY), rated for 30VDC / 250VAC Communication Ports Ethernet + RS485 Serial Port Supported Protocols Modbus TCP / S7 Protocol Program Memory 50KB program + 2KB data memory Clock Function Real-Time Clock (RTC) included Expansion Support Supports digital/analog expansion modules Operating Temp. -20°C to +60°C Mounting Method Horizontal mounting Protection Class IP20 Certifications CE, RoHS Country of Origin Made in China Typical Applications Automation systems, pumps & fans, packaging, textile machines
