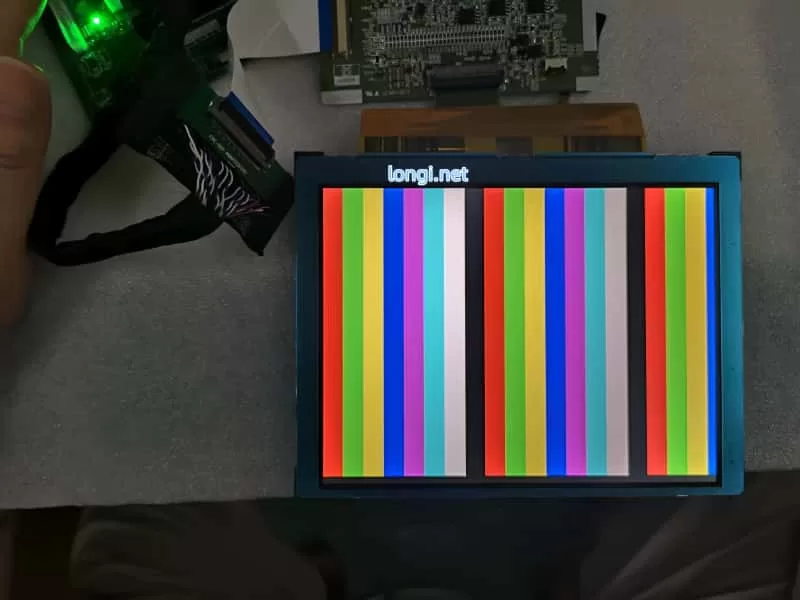

Color bar display test on the LCD screen of Yokogawa AQ1200, demonstrating the display effect of the original screen.
Color bar display test on the LCD screen of Yokogawa AQ1200, demonstrating the display effect of the original screen.

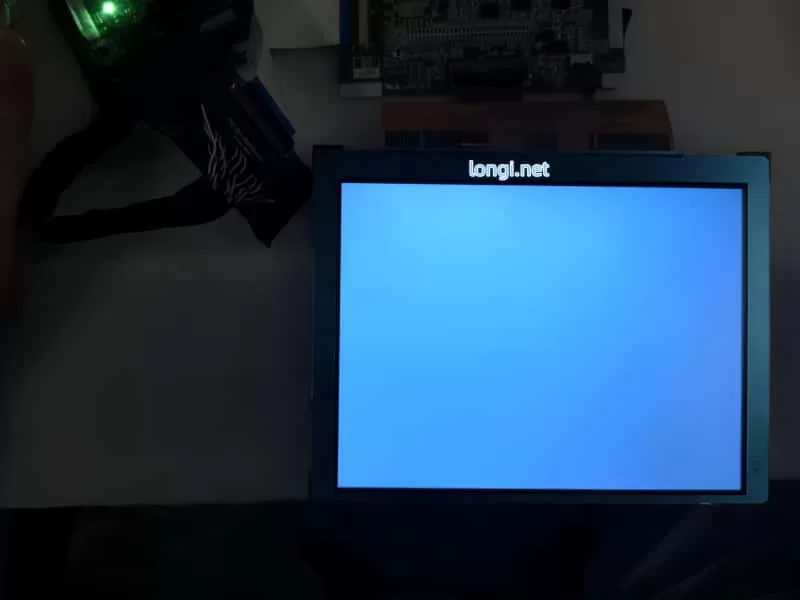

Solid color brightness test image for Yokogawa AQ1200 LCD display

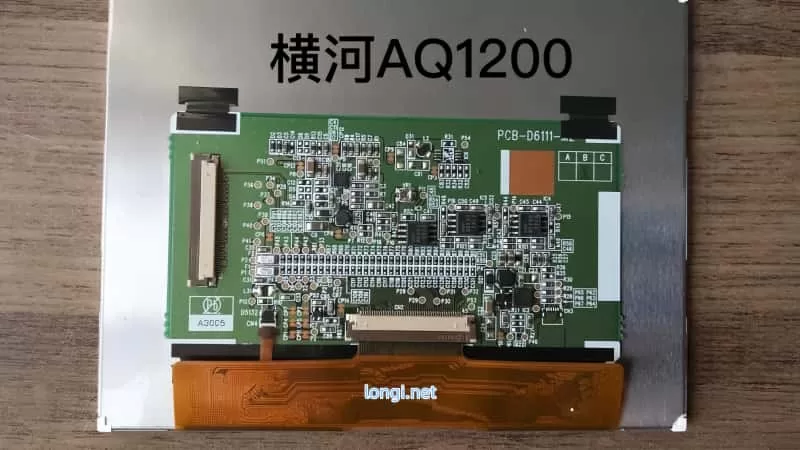

Original circuit board (PCB-D6111) for the driver sub-board of Yokogawa AQ1200 LCD screen

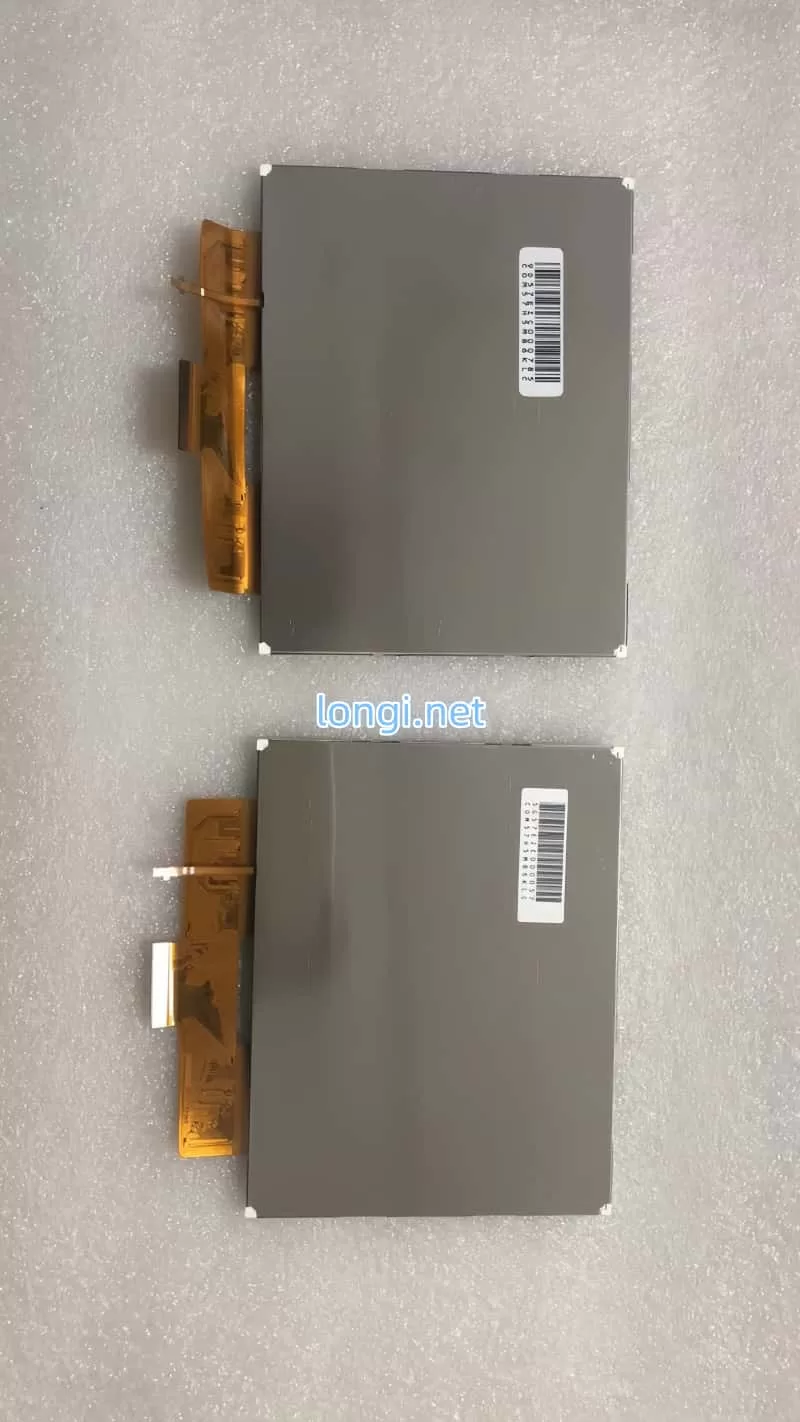

Physical comparison image of the backside of Yokogawa AQ1200 LCD display (with FPC flex cable)

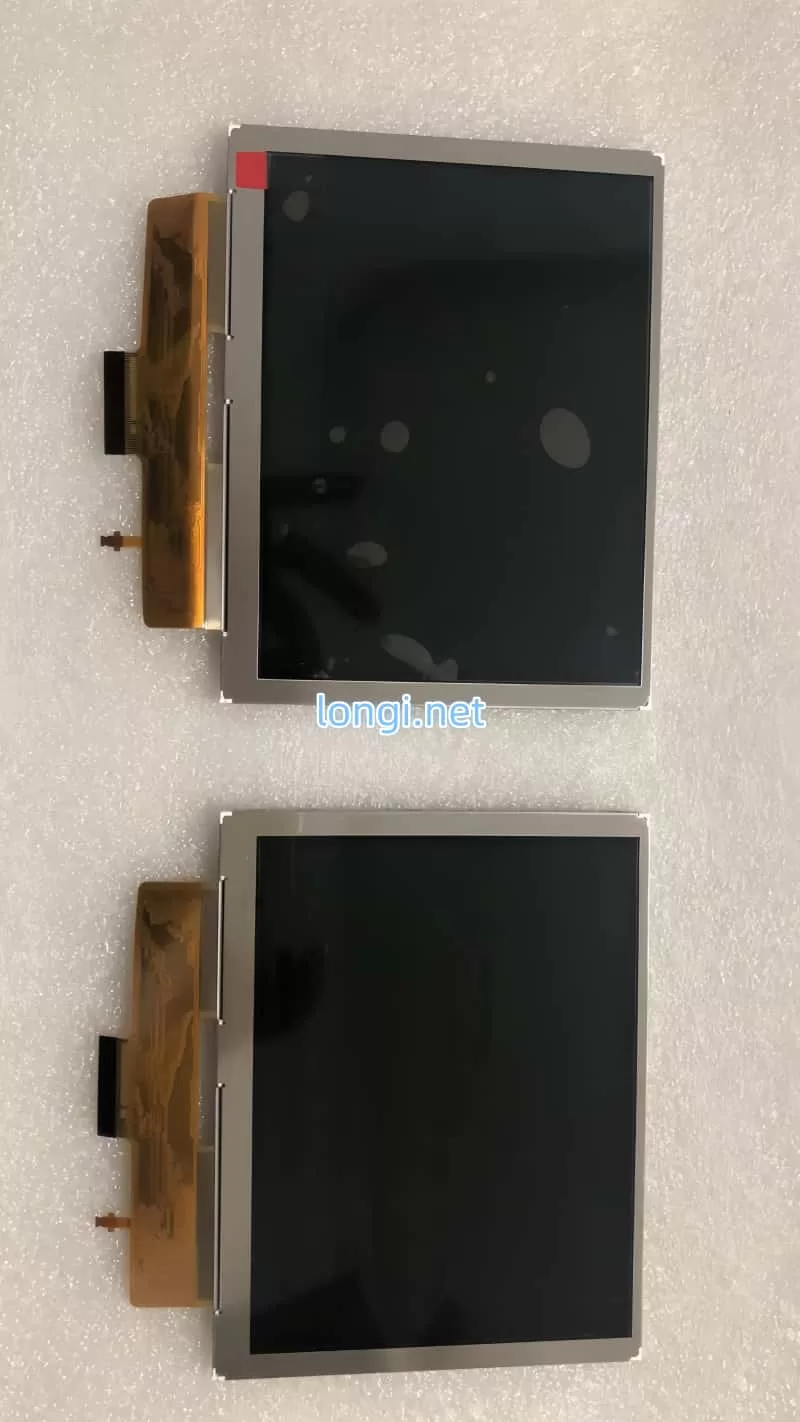

Front view display image of the original LCD screen for Yokogawa AQ1200 OTDR

Yokogawa AQ1200 Original LCD Display Module with Driver Board – Brand New Replacement Screen

$174.00

Original LCD display module for Yokogawa AQ1200 OTDR, including the driver board.
Brand-new condition, clear display, correct color reproduction, and ready for installation.
Ideal for replacing damaged or aging display panels.

Category: Tags: , , , ,

Description

Product Description

The Yokogawa AQ1200 original LCD display module is designed as a direct replacement screen for the AQ1200 OTDR series.
This unit includes the driver board PCB-D6111, has been fully tested with color-bar and full-screen patterns, and shows no dead pixels, no bright spots, and no color issues.
It is ideal for professional repair centers, refurbishment projects, and spare-parts stock.

1. Key Features

  • ✓ Original Yokogawa LCD panel for AQ1200 OTDR

  • ✓ Includes matching driver board PCB-D6111

  • ✓ Fully tested: color-bar and solid background test patterns

  • ✓ No dead pixels, no bright spots, no flickering

  • ✓ Uniform brightness and accurate color reproduction

  • ✓ Direct replacement – no firmware modification required

2. Technical Specifications

  • Compatible models: Yokogawa AQ1200 series (AQ1200A / AQ1200E / AQ1200F and other AQ1200 variants)

  • Display type: TFT LCD module with integrated driver board

  • Interface: FPC flat cable, original Yokogawa pinout

  • Condition: Brand-new, unused original part

  • Testing: Passed visual inspection, color-bar test, and full-screen brightness test

3. Supported Applications

  • Alloy or fiber-optic test instrument repair where the original AQ1200 display has failed

  • Refurbishment of used AQ1200 OTDR units for resale

  • Long-term spare part stock for laboratories, service centers, and maintenance teams

4. Included Items

  • ✓ 1 × Original LCD Screen for Yokogawa AQ1200

  • ✓ 1 × Original driver board PCB-D6111 (pre-installed on the panel)

5. Condition Description

This LCD module is supplied in brand-new condition:

  • Minimal handling marks only from testing

  • No scratches on the active display area

  • No dead pixels or line defects

  • Stable and uniform backlight

  • Ready to install and use

6. Packaging & Shipping

  • Packed in anti-static bag

  • Protected with foam or bubble wrap

  • Outer carton box for safe international shipping

  • Each unit is re-checked before dispatch

7. Why Choose This AQ1200 LCD Module

  • Original Yokogawa part, not a generic replacement

  • Tested and verified on an AQ1200 main unit

  • Saves the cost of buying a complete new OTDR

  • Suitable for professional repair workshops and serious users

End of Description
