Description
High-performance VITRONIC Line Scan Camera (Model: LSC-RF-R3-x-xR-3K-04-6X-6X-e0), made in Germany.
Designed for industrial inspection, traffic monitoring, and AOI systems. The unit is in excellent physical condition, with all interfaces intact and fully functional.
-

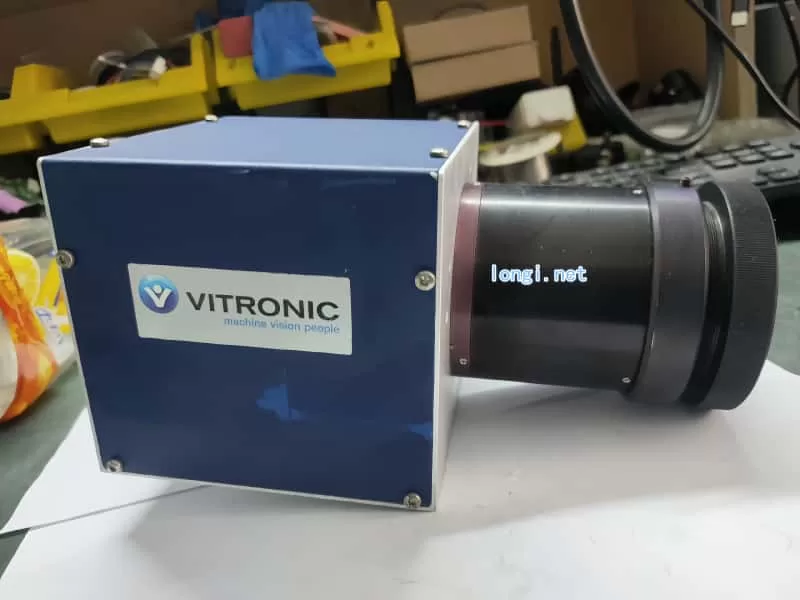

VITRONIC Line Scan Camera main unit
-

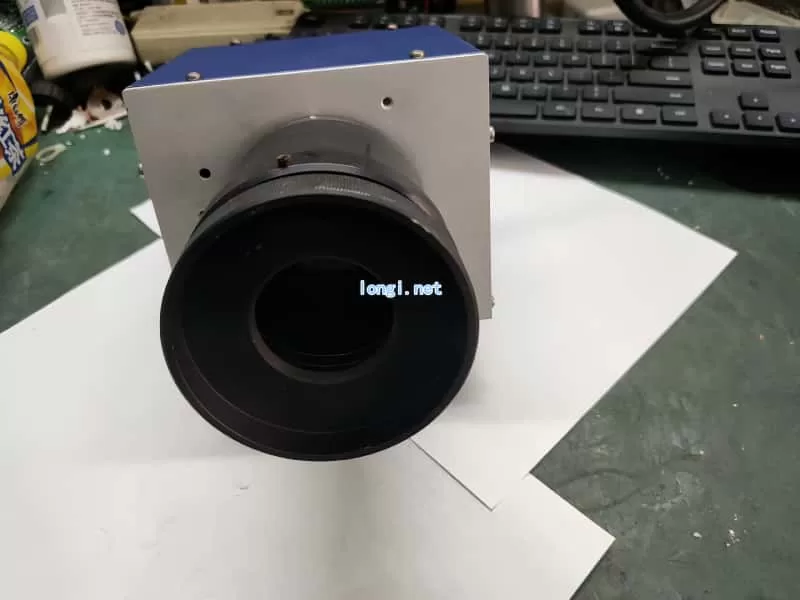

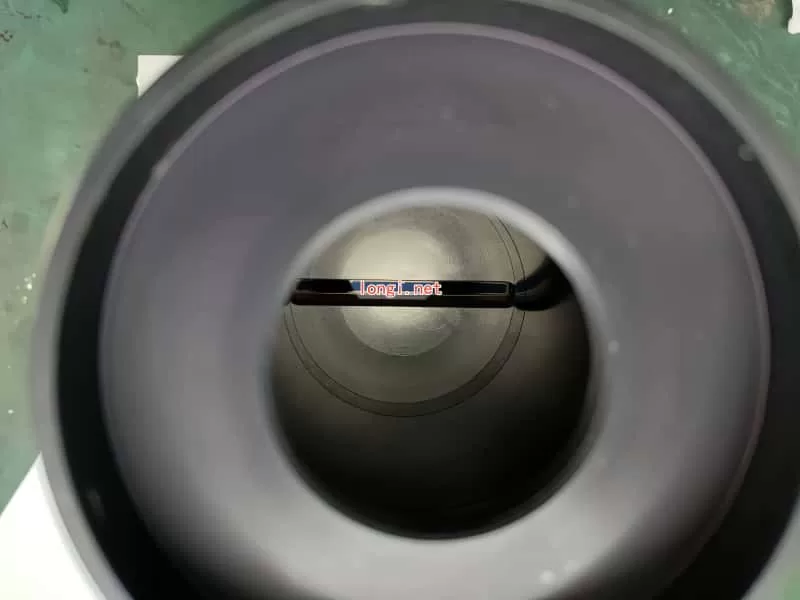

Installed lens module
-

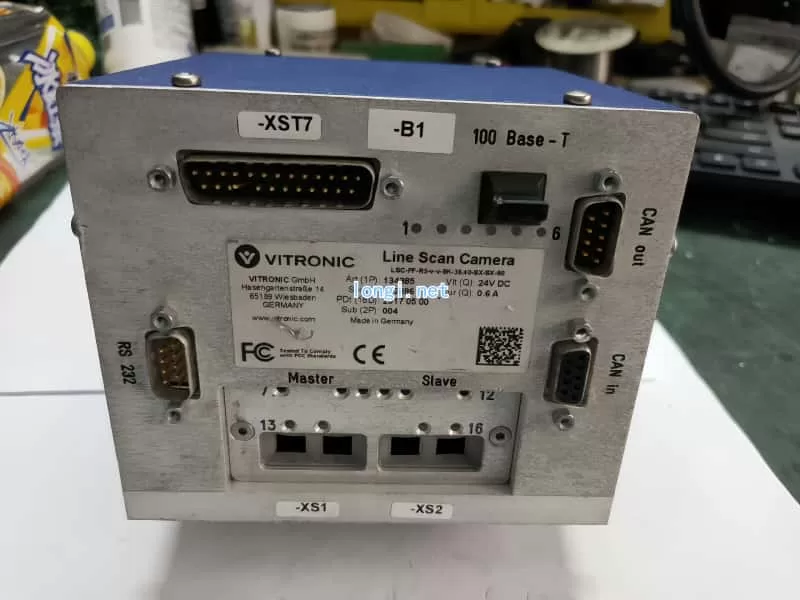

Power and communication ports intact
-
Factory labels and serial number included
-
High-speed line-scan imaging for moving targets
-
Supports CAN bus, Ethernet, and RS232 communication
-
Master/Slave synchronization for multi-camera setups
-
Rugged aluminum housing for industrial environments
-
Made in Germany with excellent build quality
-
Industrial quality control and surface inspection
-
Automated Optical Inspection (AOI) systems
-
Traffic enforcement and license plate recognition
-
Logistics and barcode scanning
-
Continuous process inspection for steel, film, and textiles
-
Item Specification Brand VITRONIC GmbH Model LSC-RF-R3-x-xR-3K-04-6X-6X-e0 Type Industrial Line Scan Camera Imaging Principle High-speed line-scan (1D to 2D reconstruction) Interfaces RS232, CAN IN / OUT, 100 Base-T Ethernet, XST7 multi-pin connector, Master/Slave synchronization ports Communication Protocols CAN Bus, Ethernet (100Base-T), RS232 serial communication Power Supply 24V DC, 0.6A Lens Mount C-Mount industrial lens interface Housing Material Aluminum alloy enclosure, vibration-resistant Dimensions Approx. 120 × 100 × 100 mm Weight Approx. 1.5 kg Synchronization Master/Slave configuration supported Cooling Passive air cooling Operating Environment Industrial / Machine Vision applications Manufacturer VITRONIC GmbH, Wiesbaden, Germany Year of Manufacture 2017 Origin Made in Germany Condition Excellent cosmetic condition, fully functional, all ports tested OK
