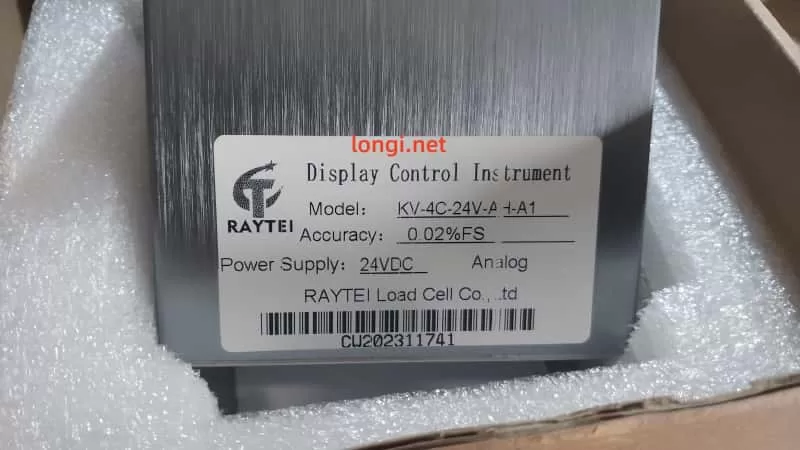

RAYTEI KV-4C-24V-A-+A1 Weighing Controller High-Precision Load Cell Display (0.02%FS, 24VDC)
RAYTEI KV-4C-24V-A-+A1 Weighing Controller High-Precision Load Cell Display (0.02%FS, 24VDC) - Image 2
RAYTEI KV-4C-24V-A-+A1 Weighing Controller High-Precision Load Cell Display (0.02%FS, 24VDC) - Image 3

RAYTEI KV-4C-24V-A-+A1 Weighing Controller High-Precision Load Cell Display (0.02%FS, 24VDC)

$129.00

RAYTEI KV-4C-24V-A-+A1 is a high-precision industrial weighing controller supporting strain gauge input. It features relay outputs, analog output, and RS-485 communication, ideal for automation, press-fitting, tension control, and force testing applications.

Category:

Description

🏷 Specifications:

Parameter Value / Description
Brand RAYTEI
Model KV-4C-24V-A-+A1
Accuracy ±0.02%FS
Input Signal ±20mV strain gauge
Display Units kg, g, N, t
Power Supply 24VDC
Output Options 2x Relay, Analog (4–20mA), RS-485

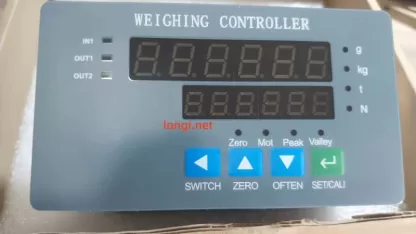

Display Type Dual-line LED display
Keys Zero, Peak, Valley, Setting, Switch
Mounting Panel mount (cut-out: 92×44mm)
Communication Modbus-RTU protocol

🛠 Features:

  • Real-time force display, peak hold, upper/lower limit output

  • Compatible with strain gauge type load cells

  • Supports quick and multi-point calibration

  • Analog output calibration supported (4–20mA or 0–10V)

  • RS485 Modbus interface for HMI / PLC integration

  • Ideal for automatic press control, tension monitoring, and load detection

🔧 Operation:

  1. Power on and self-test;

  2. Connect load cell and press ZERO to tare;

  3. Press SET/CALI to enter calibration;

  4. Input zero and full scale values;

  5. Configure OUT1/OUT2 limits;

  6. Optional unit/response/filter settings;

  7. Save with OFTEN key.

🧰 Maintenance:

  • Calibrate periodically;

  • Check terminals and wiring regularly;

  • Modbus communication supports multiple devices;

  • Built-in error codes (e.g., Err01 Upper Limit) for easy troubleshooting.
