Description
⚙️ Technical Specifications
| Item | Specification |
|---|---|
| Model | CAS 120-HR |
| Brand | Instrument Systems |
| Spectral Range | Approx. 300–1100 nm (depending on configuration) |
| Spectral Resolution | Better than 0.5 nm |
| Detector Type | CCD Array Detector |

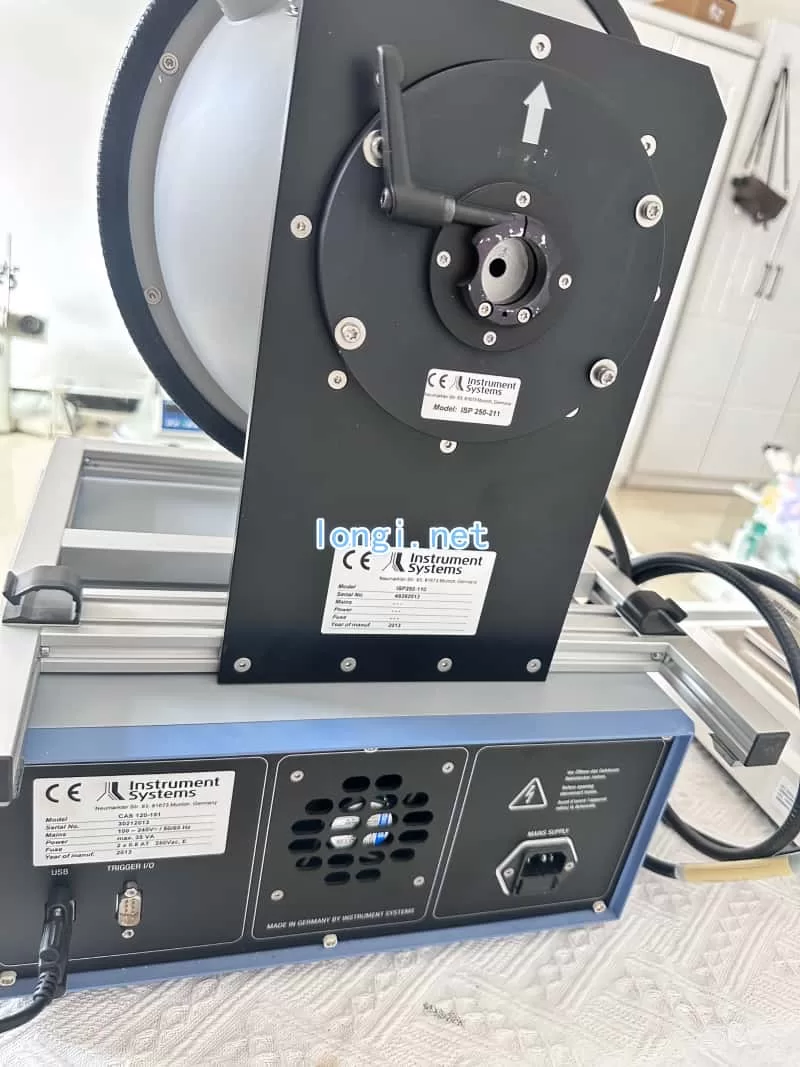

| Interface | USB, Trigger I/O |
| Integrating Sphere Model | ISP 250-11 |
| Sphere Diameter | 250 mm |
| Measurement Capability | Total luminous flux, spectral power, color coordinates |
| Power Supply | 100–240V AC, 50/60Hz, approx. 30W |
| Software Compatibility | Instrument Systems SpecWin Pro |
| Year of Manufacture | 2013 |
| Origin | Made in Germany |
| Condition | Excellent physical condition, fully tested, interfaces intact |
🧩 Applications
-
LED / OLED spectral and color analysis
-
Laser wavelength and optical power measurement
-
Luminous flux and CRI evaluation for lighting devices
-
Display uniformity and chromaticity testing
-
Laboratory reference light calibration
💡 Key Features
-
High-resolution spectral analysis (better than 0.5 nm)
-
Fast integration time with dynamic exposure control
-
USB plug-and-play interface
-
Compatible with integrating spheres for total flux measurement
-
Full compatibility with SpecWin Pro software for spectral analysis and reporting
📦 Included Items
-

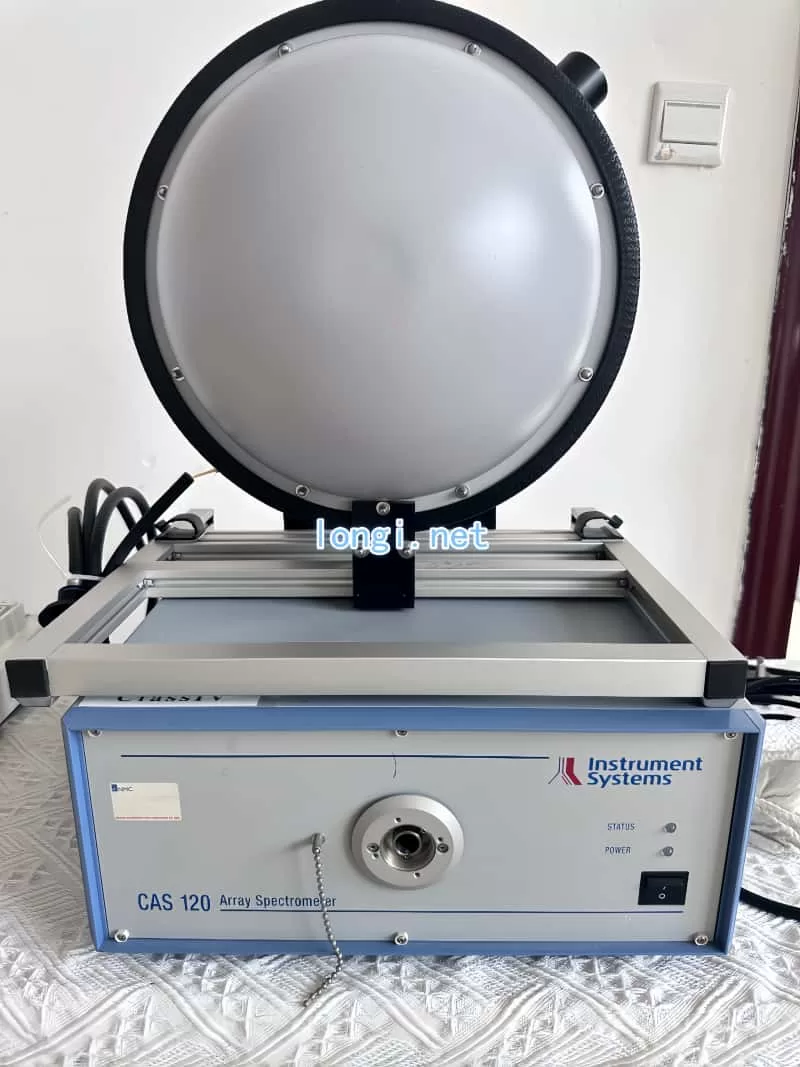

CAS 120-HR Spectrometer main unit
-

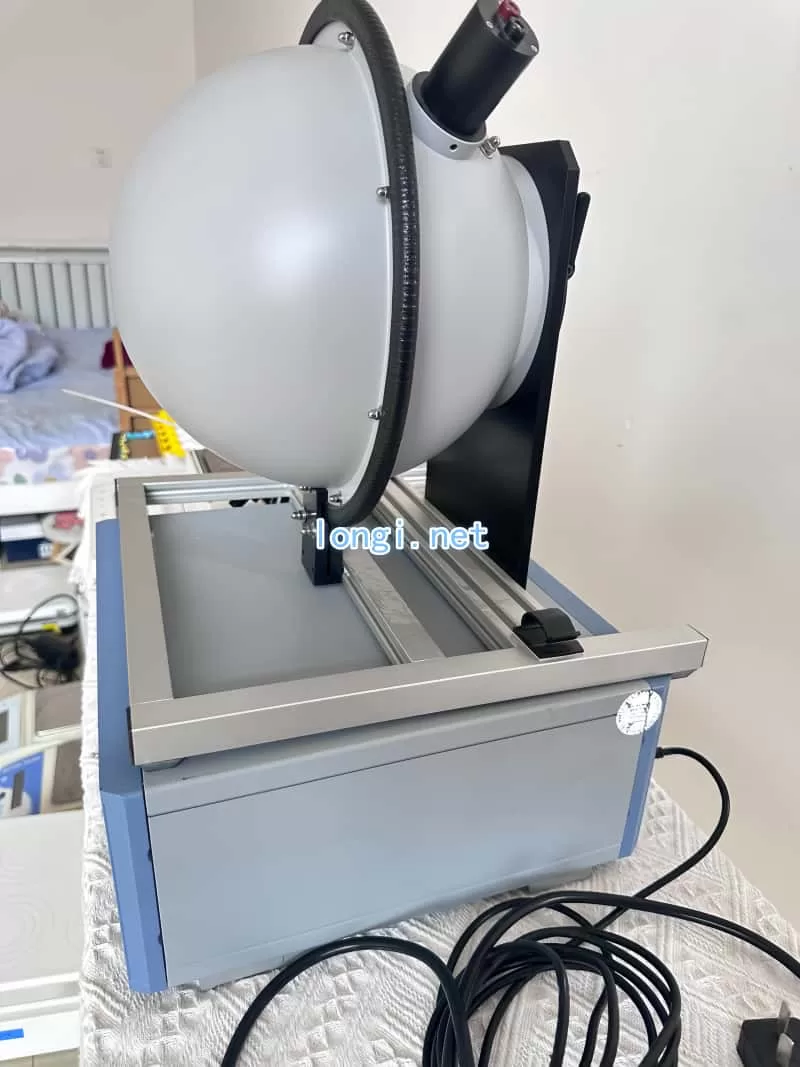

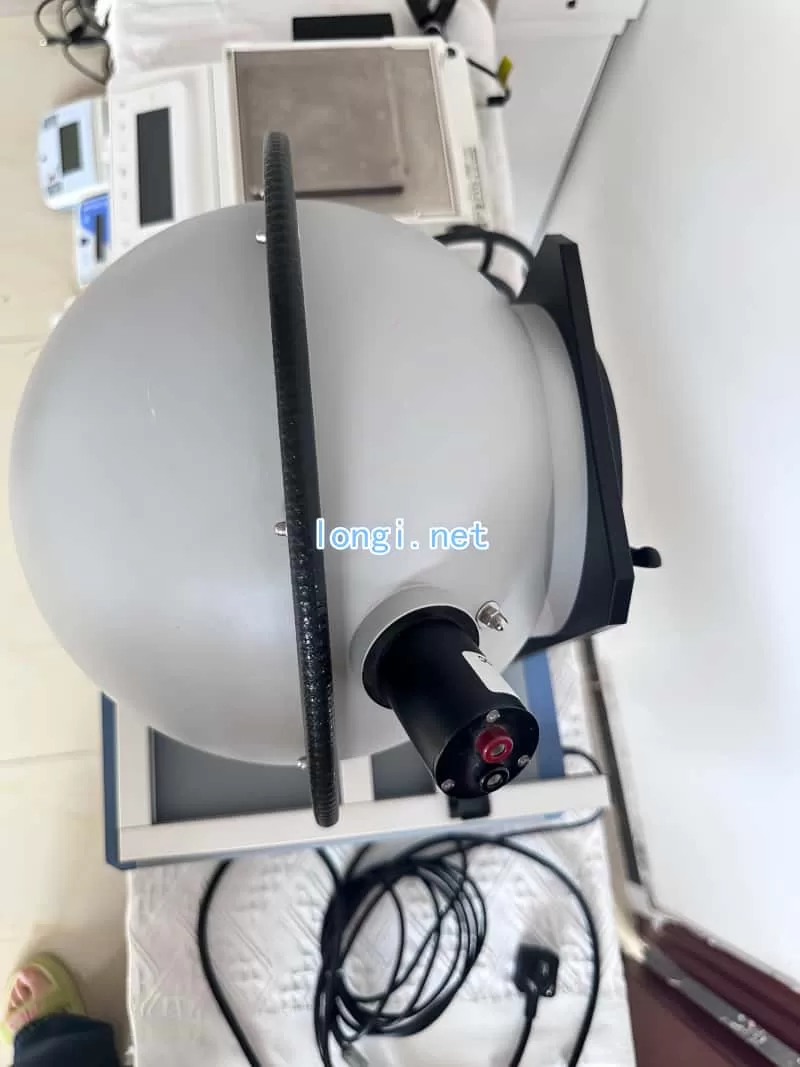

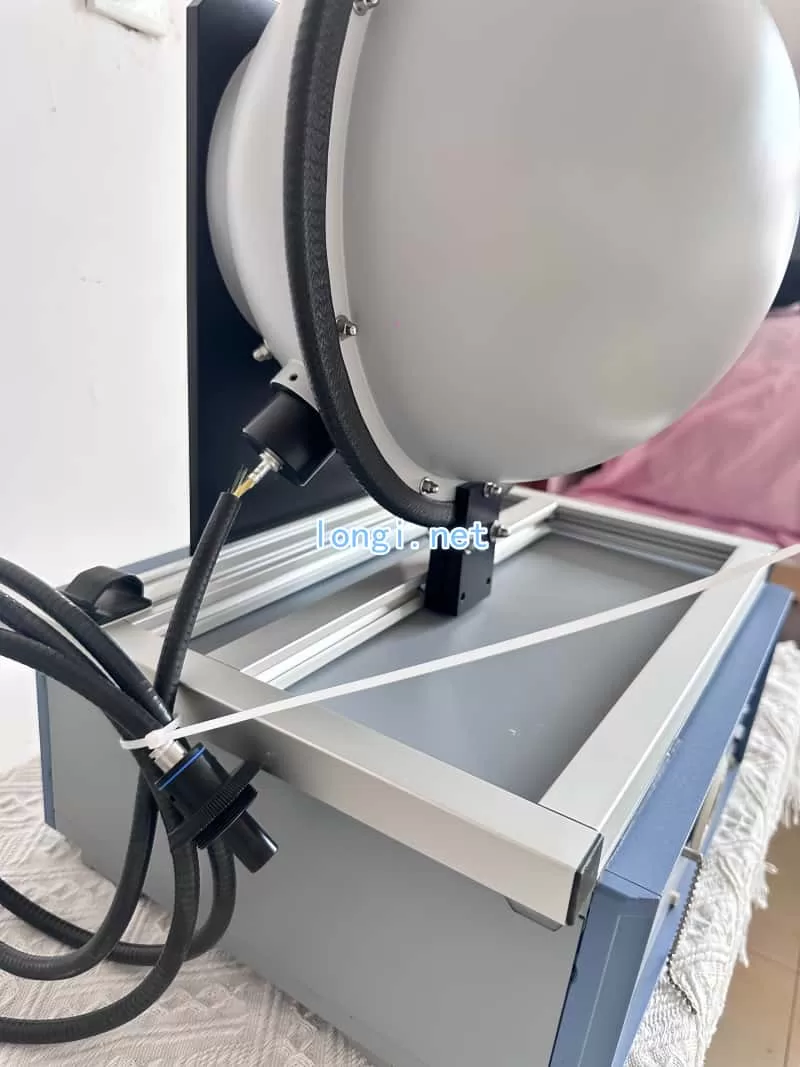

ISP 250-11 Integrating Sphere
-
Power cable and USB communication cable
-
Factory labels and calibration tag intact
