Description
Product Overview

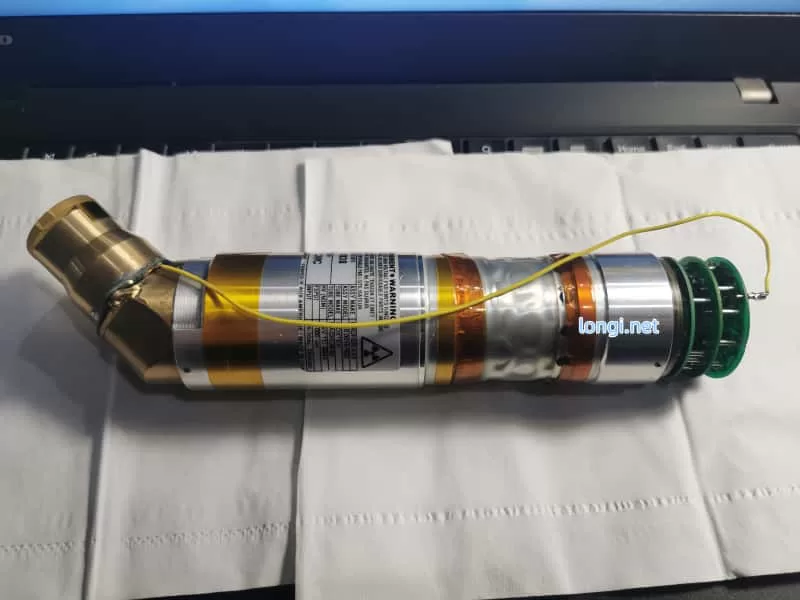

This Bruker/Moxtek/Kevex micro X-ray tube assembly is a high-performance miniature X-ray source designed for compact analytical instruments. The tube features a precision-machined housing, integrated HV components, multiple PCB control layers, and factory shielding. It is especially suitable for OEM replacements, instrument refurbishment, and custom analytical system development.
Model Information & Specifications

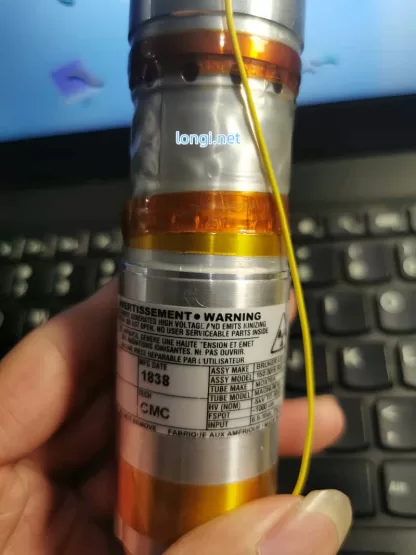

Based on the label and construction, this unit corresponds to a high-voltage miniature X-ray source originally used in Bruker handheld or benchtop analytical platforms. Typical specifications for this class include:
• High voltage: up to 50–60 kV (label shows HV input classification)
• Power input: 6–10 W class
• Spot size: micro-focus configuration for high resolution
• Assembly format: sealed tube + PCB driver boards
• Manufacturer references: Bruker / Moxtek / Kevex (tube model and assembly listed on tag)
Condition & Functional Notes
• Removed from a functional analytical system
• HV module, filament section, shielding, and connector PCBs are intact
• No cracks in tube housing or insulation wrapping
• Wiring and solder joints (including yellow ground wire) are preserved
• Suitable for integration by experienced engineers familiar with X-ray systems
Applications
This X-ray tube assembly can be used in:
• XRF analyzers
• XRD miniature systems
• Thickness measurement instruments
• Elemental spectroscopy systems
• Custom R&D equipment
• Detector source modules requiring micro-focus tubes
Package Contents
• 1× Micro X-ray tube assembly
• Includes attached PCB boards and wiring harness
Important Notice
This is a high-voltage radiation component. Only qualified engineers should install or operate it. Ensure proper shielding and safety compliance when integrating into any system.
