Agilent TV301SF Turbomolecular Vacuum Pump (Model G3850-80020)

$1,821.00

Agilent TV301SF Turbomolecular Vacuum Pump, model G3850-80020, 75VAC input, 150W, 963Hz, made in Italy. Ideal for high-vacuum applications such as mass spectrometry, electron microscopy, and semiconductor coating systems. Excellent condition with complete port caps and undamaged rotor.

Category:

Description

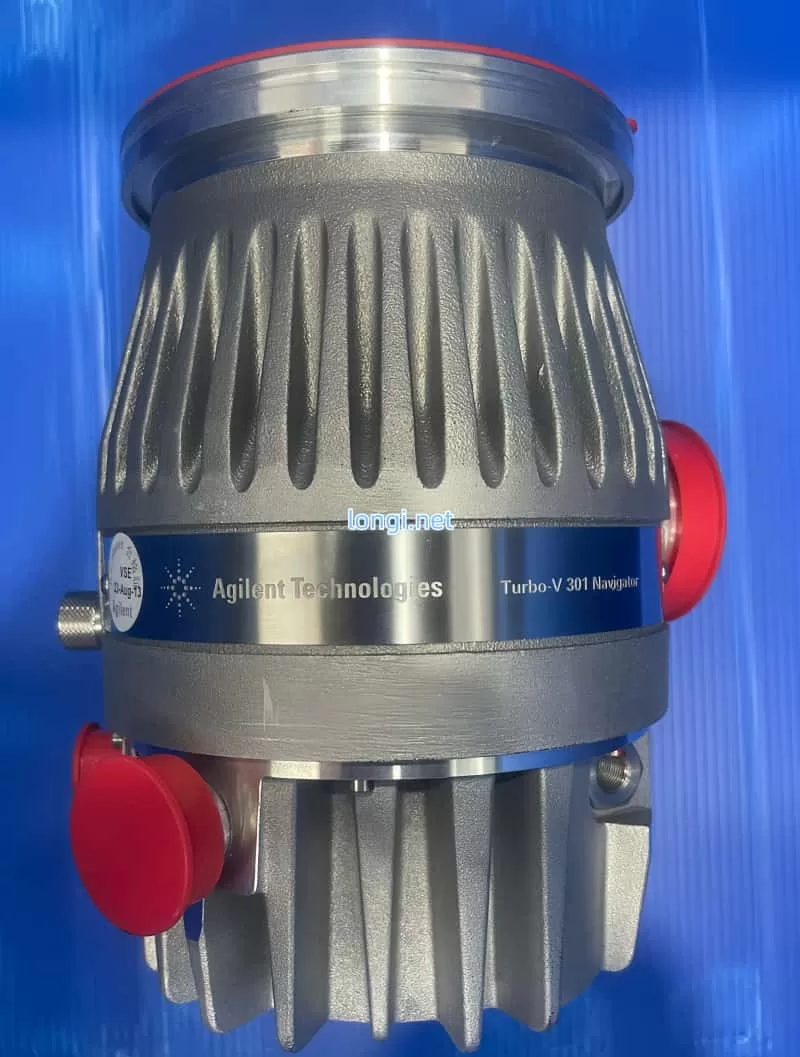

The Agilent TV301SF Turbomolecular Pump (Model G3850-80020) is part of Agilent’s Turbo-V Navigator series. It features a precision-balanced aluminum rotor and advanced bearing system for low vibration and high reliability. Designed for demanding high-vacuum applications in scientific, analytical, and industrial systems.

Key Specifications:

  • Model: TV301SF

  • Part Number: G3850-80020

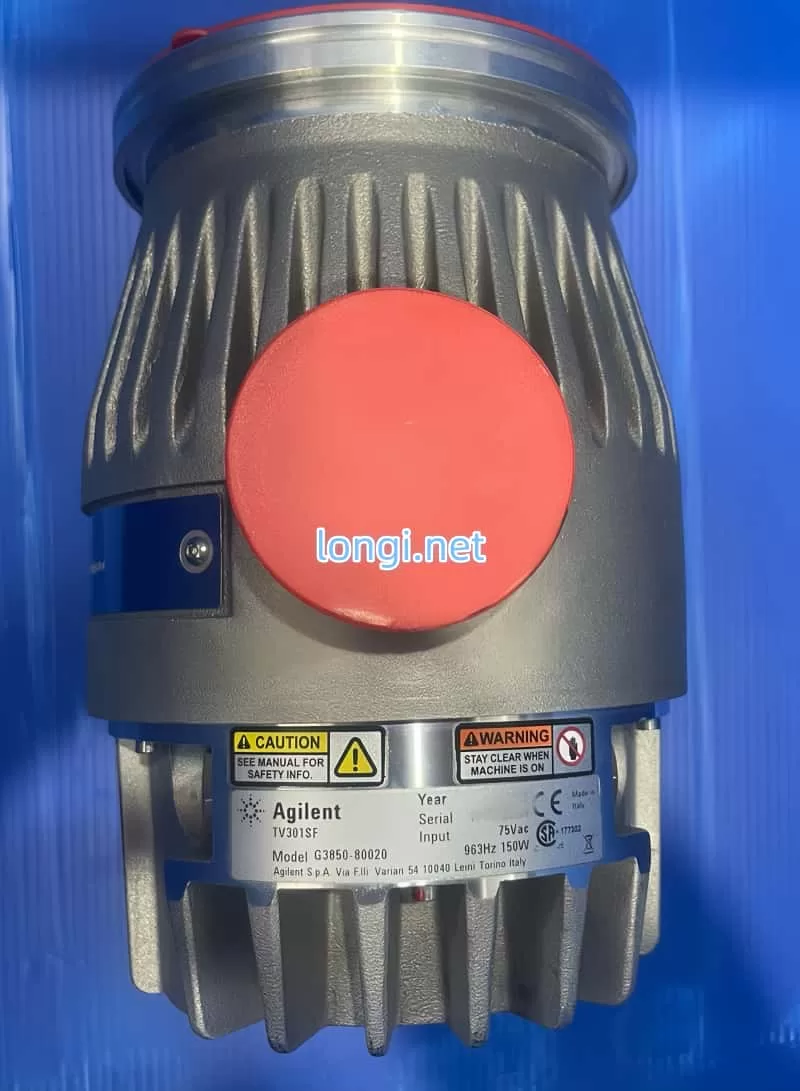

  • Input Power: 75 VAC, 150 W, 963 Hz

  • Pumping Speed: 260–300 L/s (N₂)

  • Start-up Time: < 3 min

  • Compression Ratio: 10⁷ Pa

  • Flange Type: ISO-K / CF optional

  • Cooling: Natural convection / fan cooling

  • Noise Level: < 45 dB

  • Made in: Italy

Applications:

  • Mass spectrometers and electron microscopes (SEM/TEM)

  • PVD / CVD thin film coating systems

  • Research vacuum chambers and accelerators

  • Vacuum drying and analytical instruments

Condition:

  • Genuine Agilent pump, excellent cosmetic condition

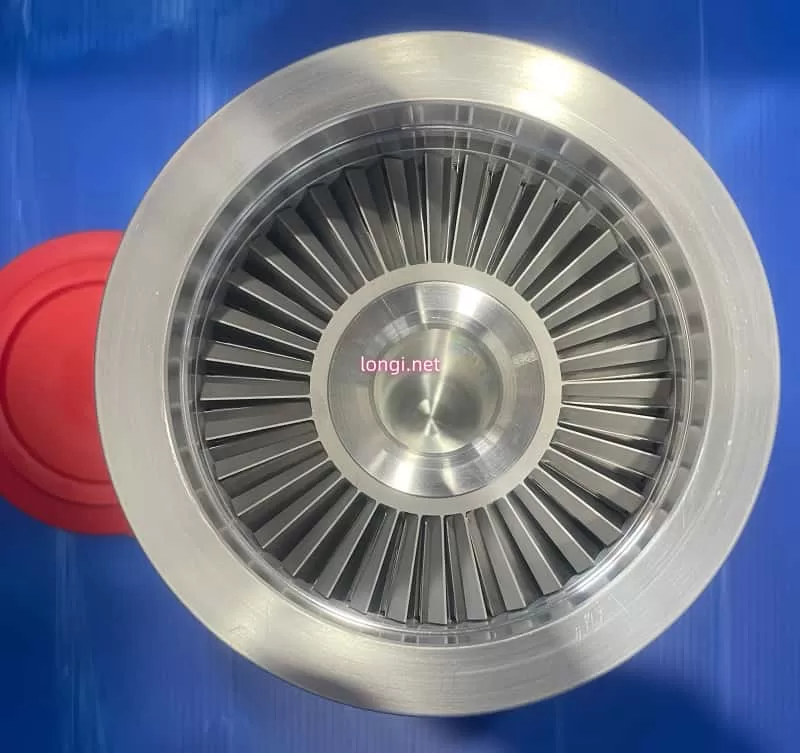

  • Rotor intact, no mechanical damage

  • Includes protective red port caps

  • Fully tested and ready for integration
