Description
The Spotron SP-255-FU10kN is a high-precision force gauge from Japan, designed for professional tension and compression testing in laboratory and industrial environments.
This unit is new old stock and includes:
-

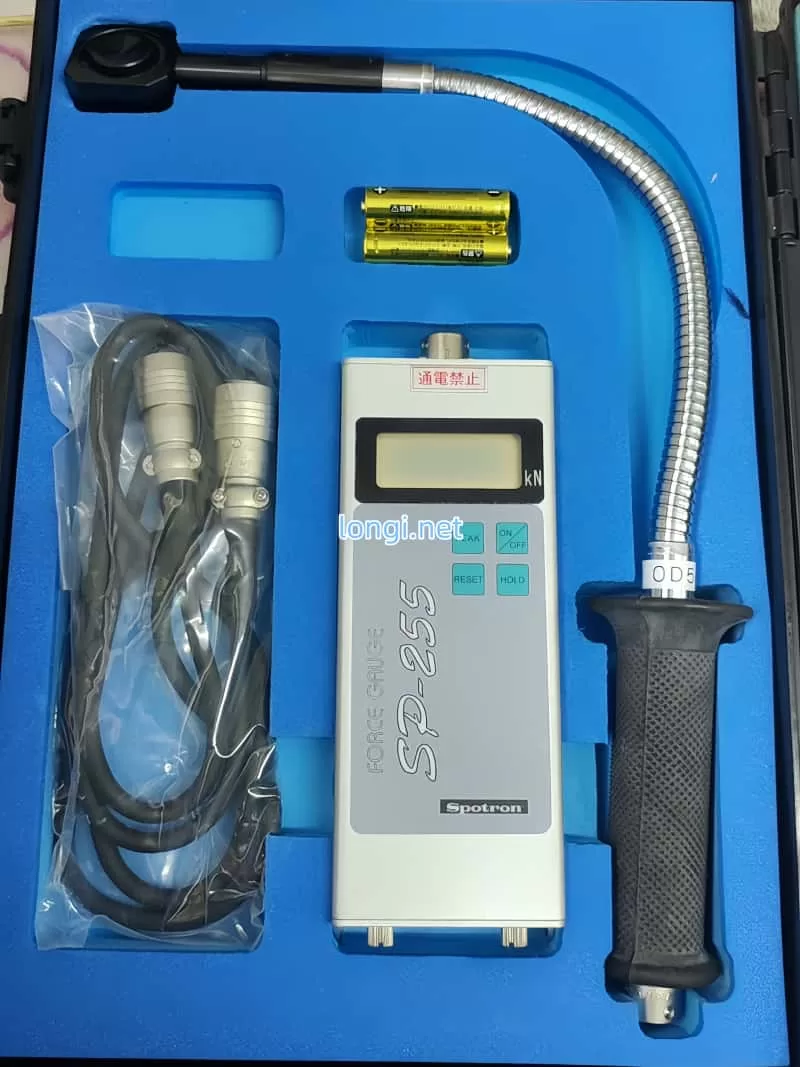

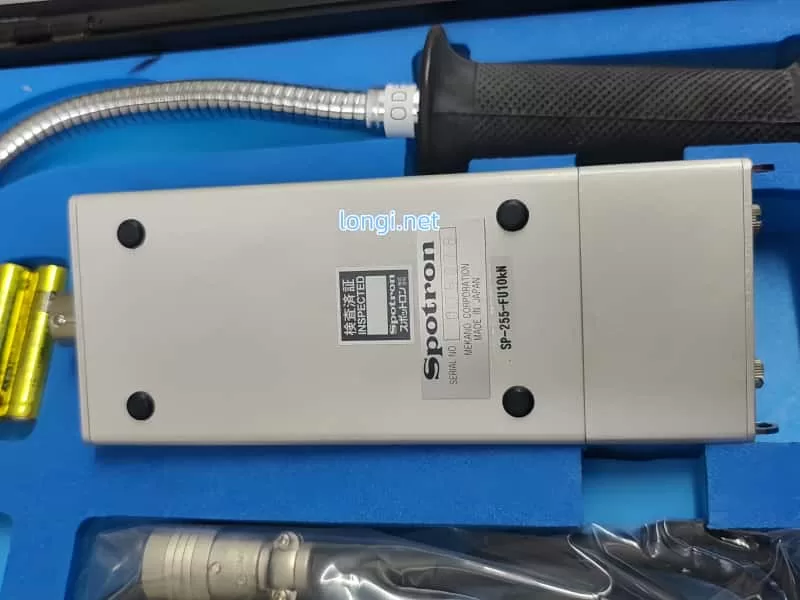

SP-255 main digital force gauge
-

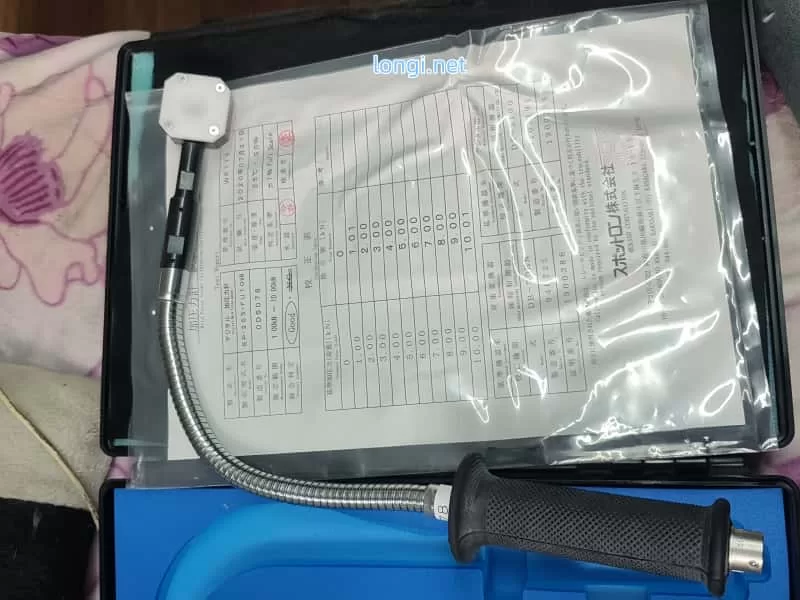

FU10kN force probe with reinforced flexible shaft
-

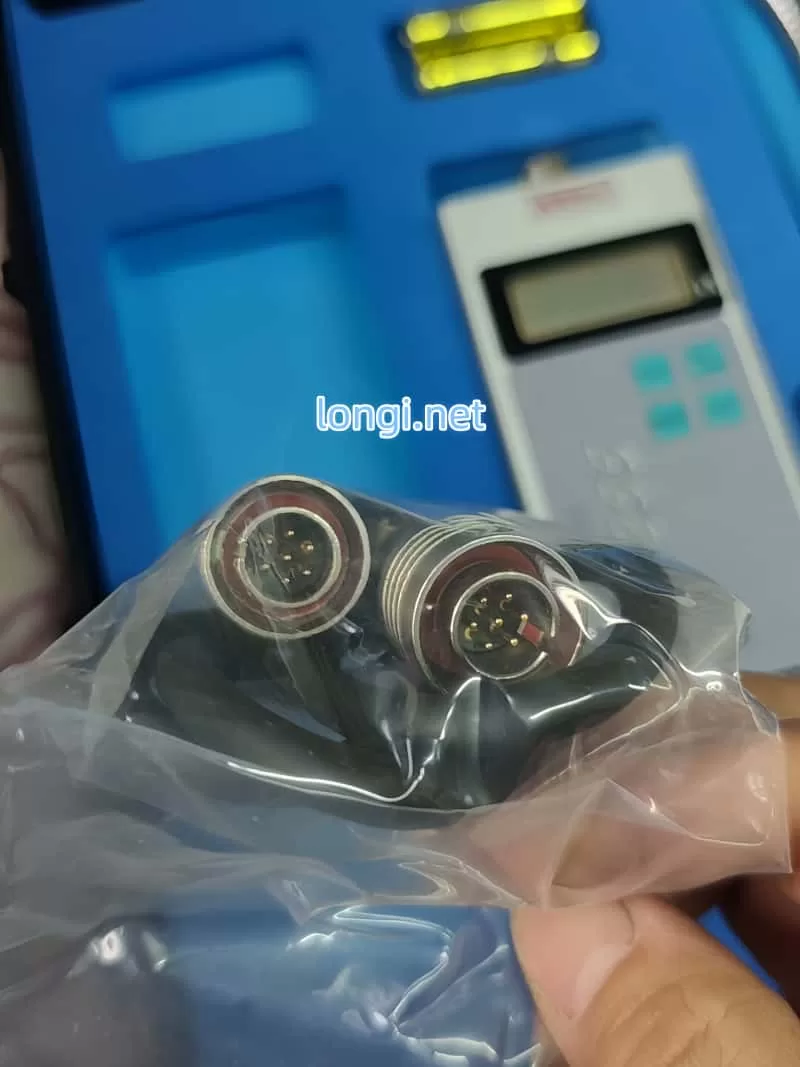

Original connection cables
-
Inspection/calibration sheet
-

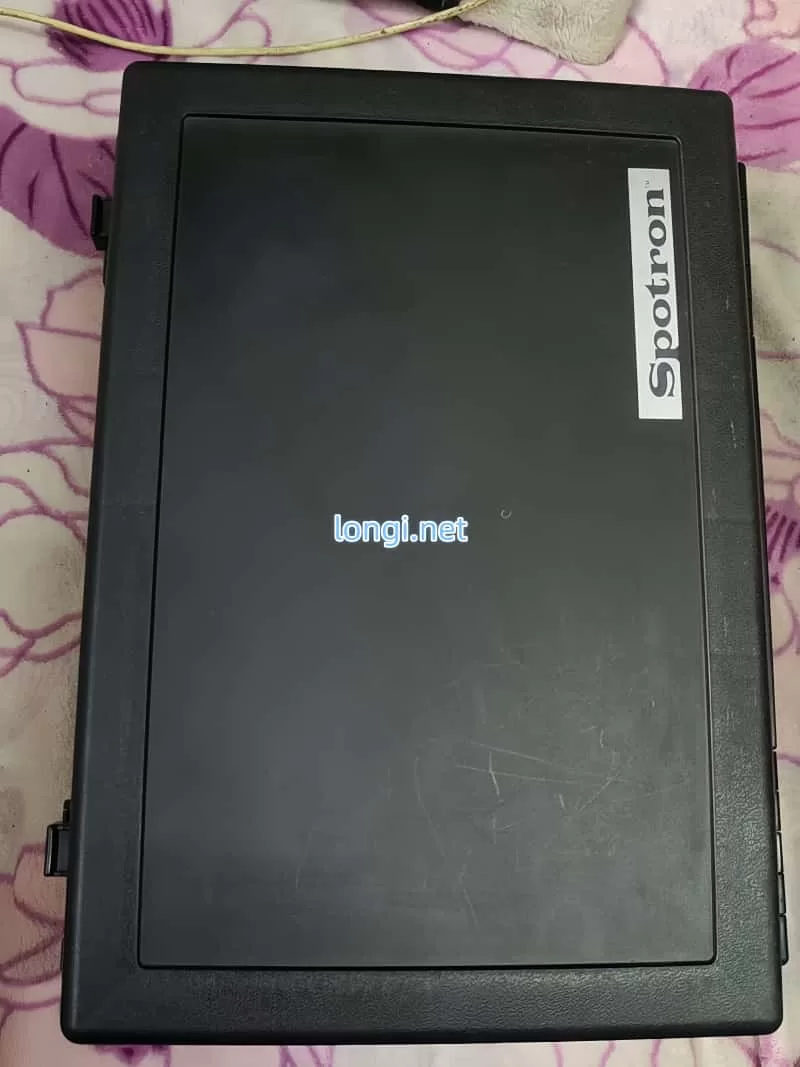

Protective carrying case
-
Batteries included
Applications:
✔ Material tensile/compression testing
✔ Fixture/Tooling force verification
✔ Mechanical component force analysis
✔ Quality inspection and R&D
Condition is as shown—unused and fully functional.
Specifications
| Item | Description |
|---|---|
| Measurement Range | 0 – 10 kN |
| Resolution | 1 N (or per factory configuration) |
| Accuracy | Typically ±0.5% F.S. (depending on sensor type) |
| Sensor Type | External load cell with flexible shaft |
| Display | LCD digital display |
| Measurement Modes | Peak, Hold, Real-time |
| Units | kN (other units may be available depending on configuration) |
| Power Supply | AA batteries × 2 (included) |
| Interface | Multi-pin industrial connector (sensor cable included) |
| Operating Temperature | 0°C – 40°C |
| Storage Temperature | –20°C – 70°C |
| Included Accessories | External force sensor, connection cable, carry case, batteries, documents |
| Body Material | Aluminum alloy |
| Sensor Range | FU-type sensor up to 10 kN |
| Application | Industrial force measurement, mechanical testing, material testing, press-fit force, assembly line QA |
